Product details

OncoFu Elite (for RNA) Panel v1.0

Catalog Number:

#1001511
#1001512

OncoFu Elite (for RNA) Panel v1.0 targets 105 genes which are the most common or relevant to clinically significant fusions in solid tumor studies. The probes cover all transcript coding regions and some UTR regions involved in the occurrence of fus- ions which are officially included in RefSeq 109. The panel supports the enrichment of fusion, mutation, and gene expression information at the RNA level.

Request Quote

Product details
Kit Content
FAQ
Ordering Information
Resources

Gene List
ABL1*†	ABL2	AKT3	ALK	ARHGAP26	AXL	BCL2†	BCOR*	BRAF	BRD3*	BRD4*	CAMTA1
CCNB3*	CCND1	CIC†	COL6A3	CSF1R	DNAJB1	EGFR	EML4	EPC1*	ERBB2†	ERG*	ESR1
ETS1	ETV1*	ETV4	ETV5*	ETV6*	EWSR1	FGFR1	FGFR2	FGFR3	FGR*	FLI1	FLT3
FOSB	FOXO1	FUS	GLI1	HMGA2	INSR	JAK2*	JAK3	JAZF1	KIF5B†	KIT†	KMT2A
MAML2	MAST1	MAST2	MEAF6	MET*	MLLT3	MSH2	MSMB†	MUSK	MYB	MYC	NCOA1*
NCOA2*	NOTCH1	NOTCH2	NOTCH3†	NR4A3*	NRG1	NTRK1	NTRK2	NTRK3	NUMBL	NUTM1	PAX3
PAX7	PDGFB	PDGFRA	PDGFRB†	PHF1*	PIK3CA*	PKN1	PLAG1*	PPARG*	PRKACA	PRKCA	PRKCB
RAF1	RARA*	RELA	RET	ROS1	RSPO2*	RSPO3	SS18	STAT6*	TAF15	TCF12†	TCF3
TERT	TFE3	TFEB	TFG	THADA	TMPRSS2*†	TP53*	USP6*	YWHAE*

* Covers all 5'-UTRs; †Covers all 3'-UTRs

Performance

Capture Performance

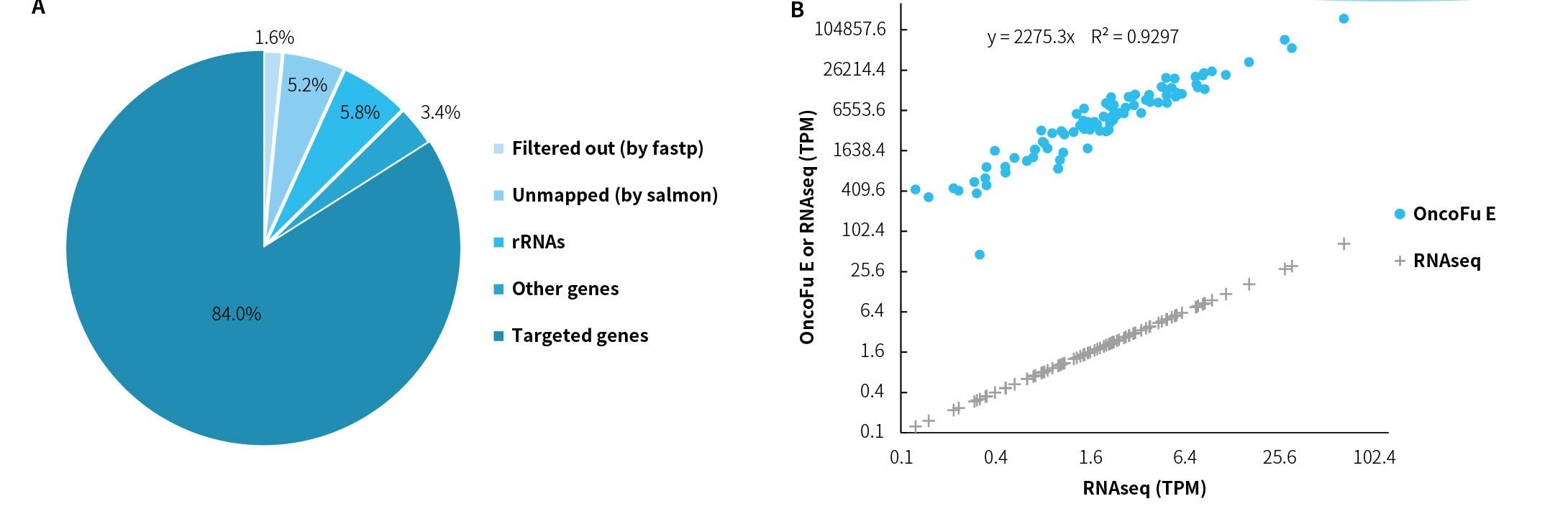

Figure 1. Capture performance of OncoFu Elite (for RNA) Panel v1.0 (OncoFu E) A. Typical capture sequencing data; B. Comparison of the relative abundan- ce of target genes between capture sequencing and RNAseq. Libraries of Human Brain Total RNA Standards (Clontech, 636530) were prepared using NadPrep Total RNA-To-DNA Module with NadPrep DNA Universal Library Preparation Kit Series, and separately carried out the direct sequencing (RNAseq) and OncoFu E capture sequencing (OncoFu E).

Gene Fusion Detection

Figure 2. Fusion detection of FFPE fusion RNA standards by OncoFu Elite (for RNA) Panel v1.0.A. Comparison of OncoFu E targeted enrichment and RNAseq;B. Targeted enrichment performance of OncoFu E after multiple dilution of the standards. Libraries of 100 ng Seraseq® FFPE Tumor Fusion RNA v4 Reference Material were prepared using NadPrep Total RNA-To-DNA Module with NadPrep DNA Universal Library Preparation Kit Series, separately carried out the direct sequencing (RNAseq), rRNA-depleted RNAseq (NEBNext rRNA Depletion Kit v2), and RNA capture sequencing (OncoFu E). 1 Gb data of each library was used for fusion analysis (FusionCatcher v1.10).
