Product details

NadPrep NanoBlockers (for Illumina®, NXT)

Catalog Number:

#1006111 #1006112

NadPrep NanoBlockers (for Illumina®, NXT) is a universal blocking sequencing designed for use with Illumina's sequencing platform for the Nextera™ library. This product can bind to the Tn5 adapters sequences of the libraries, reducing non-specific binding between adapters, which enhances on-target rate, increasing the depth of enrichmen

Request Quote

Product details
Kit Content
FAQ
Ordering Information
Resources

Features

Single-tube universal: Capable of blocking adapter libraries with single or dual 6-10 nt indexes.
Efficient blocking: Significantly enhances the efficiency of captured data.
Stable performance: Excellent and consistent capture performance across different batches and sizes of panels.
User-friendly: Compatible with Nanodigmbio's liquid-phase hybrid capture system

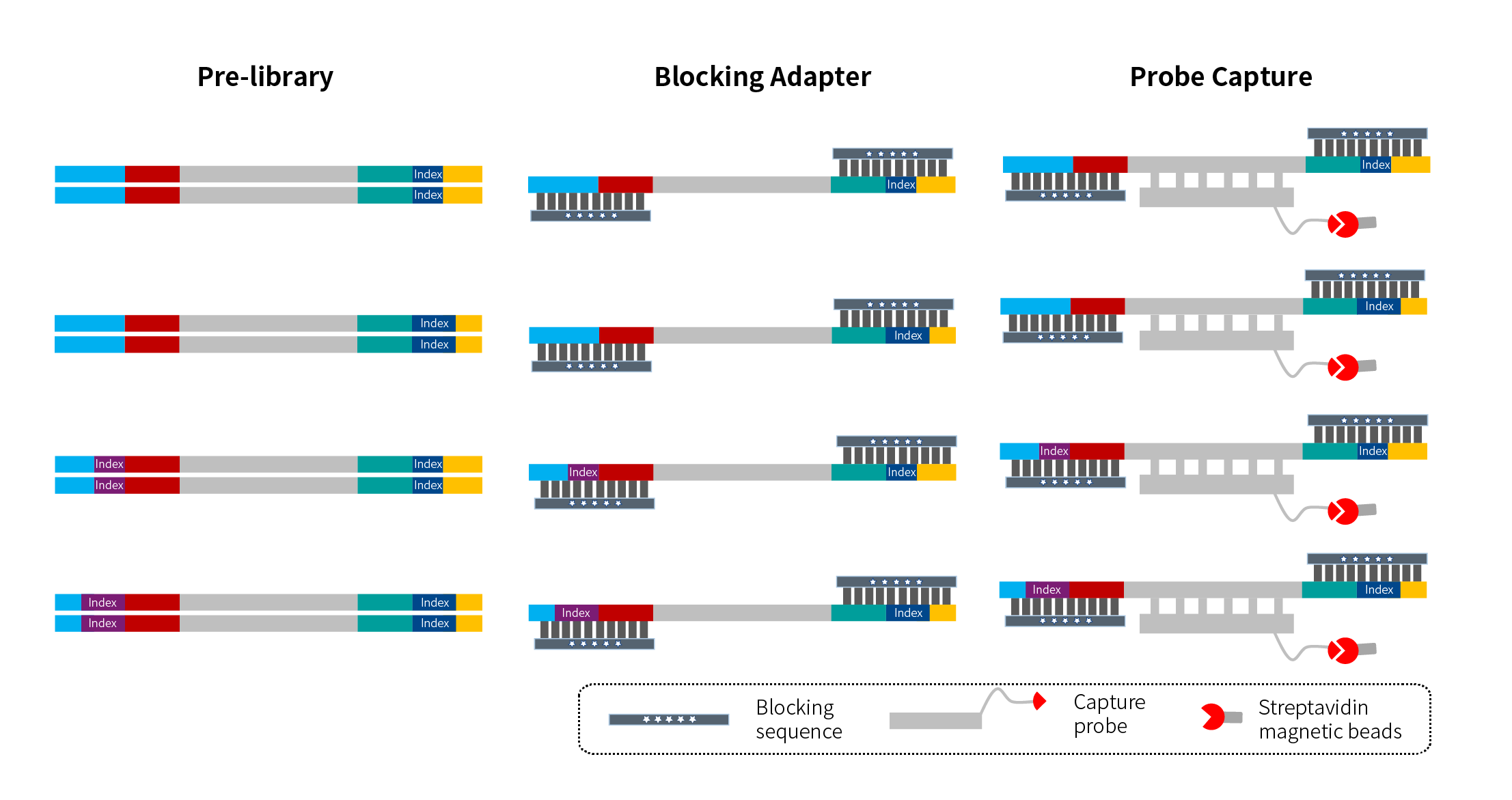

Workflow

Performance

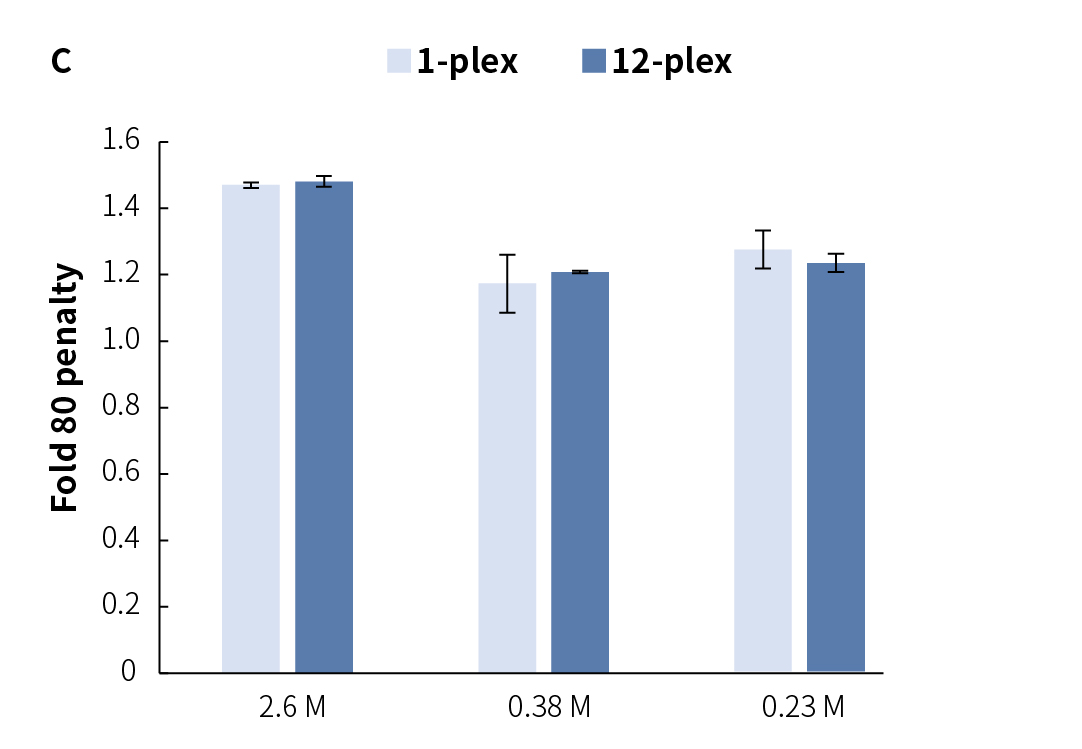

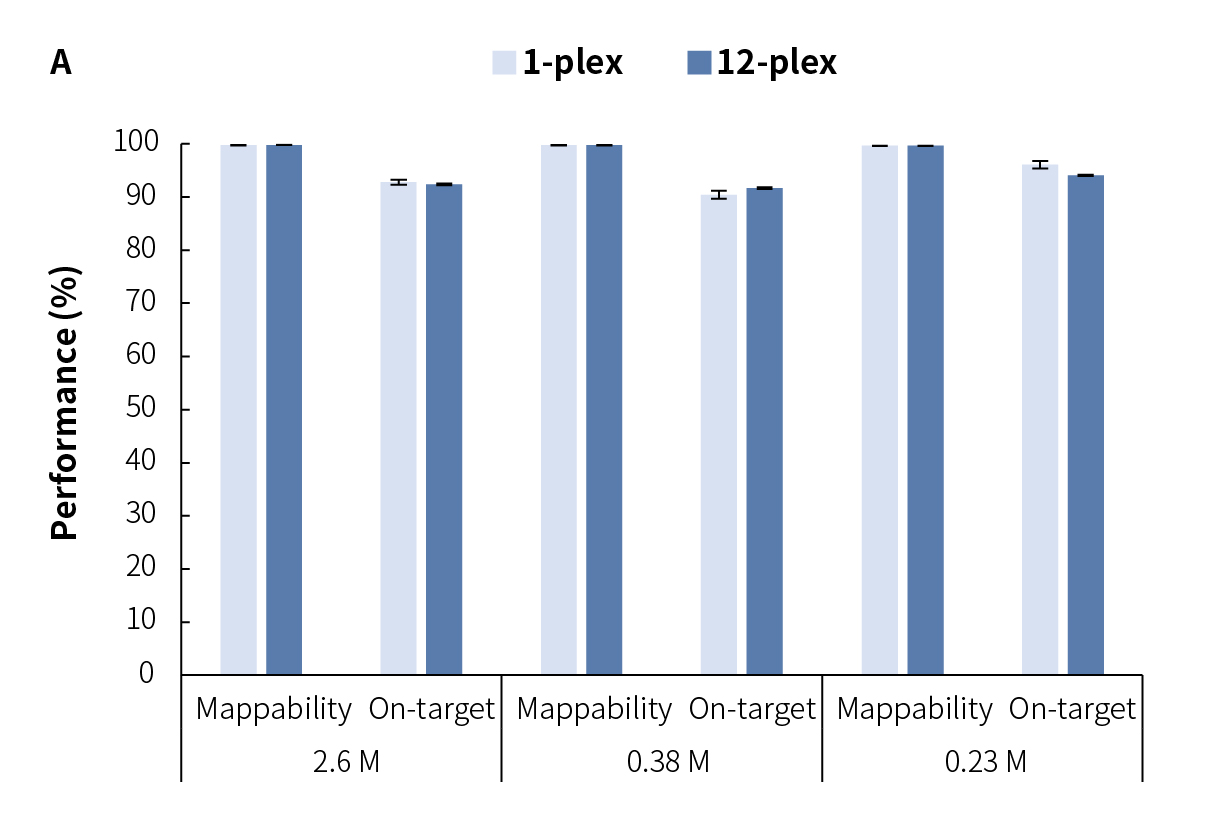

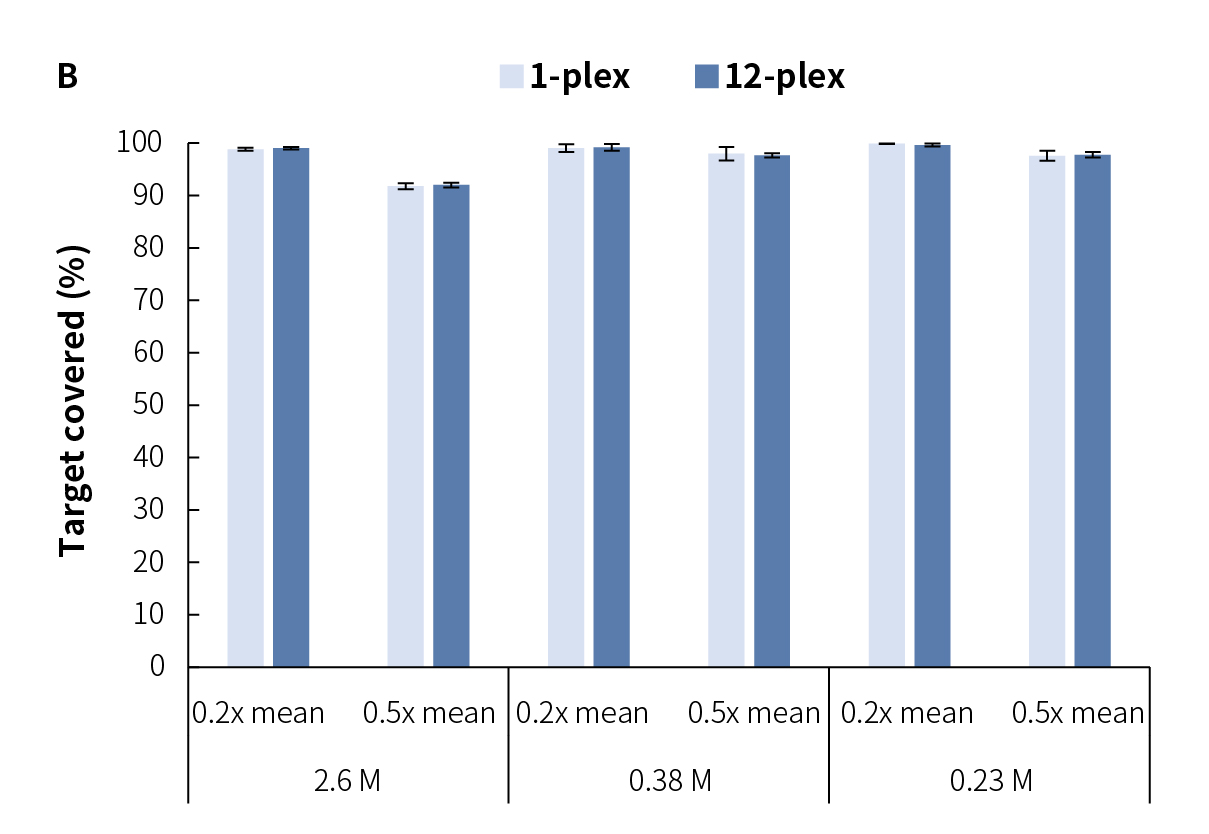

Figure 1. The blocking efficiency of NadPrep NanoBlockers (for Illumina®, NXT). A total of 500 ng per library was used, with overnight hybridization of 16 hours, in combination with NadPrep Hybrid Capture Reagents and panels of various sizes. Under both single-plex (500 ng) and 12-plex (6000 ng) mixing schemes, the performance of NadPrep NanoBlockers (for Illumina®, NXT) remained excellent and stable across panels of different sizes. A. Mappability and on-target rate; B. Coverage uniformity and consistency; C. Fold 80

For research use only. Not for use in diagnostic procedures.

Catalog#	Color of Tube Cap	Component	Volume	Package/Storage
1006111		NadPrep NanoBlockers (for Illumina^®, NXT), 16 rxn	40 μL	-20℃
1006112		NadPrep NanoBlockers (for Illumina^®, NXT), 96 rxn	210 μL	-20℃
